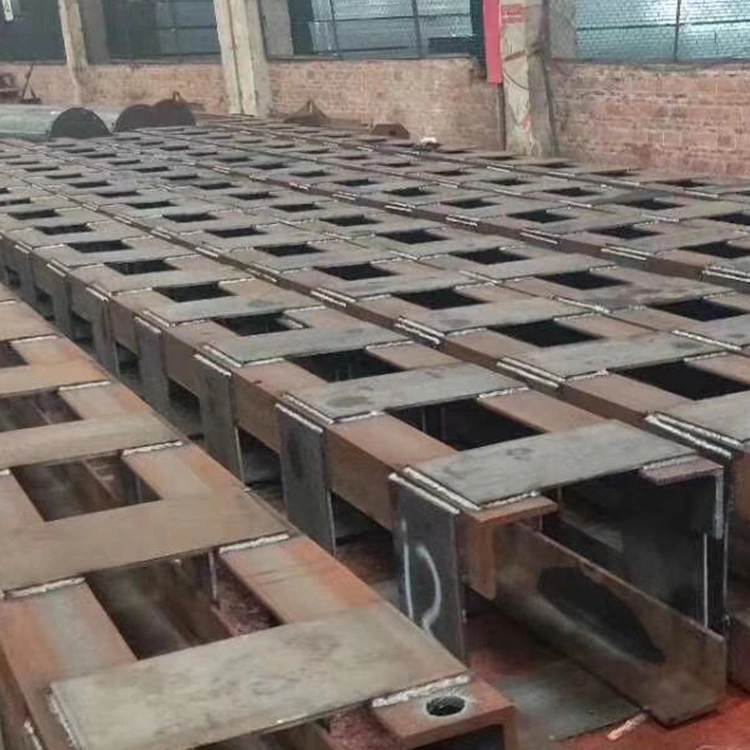

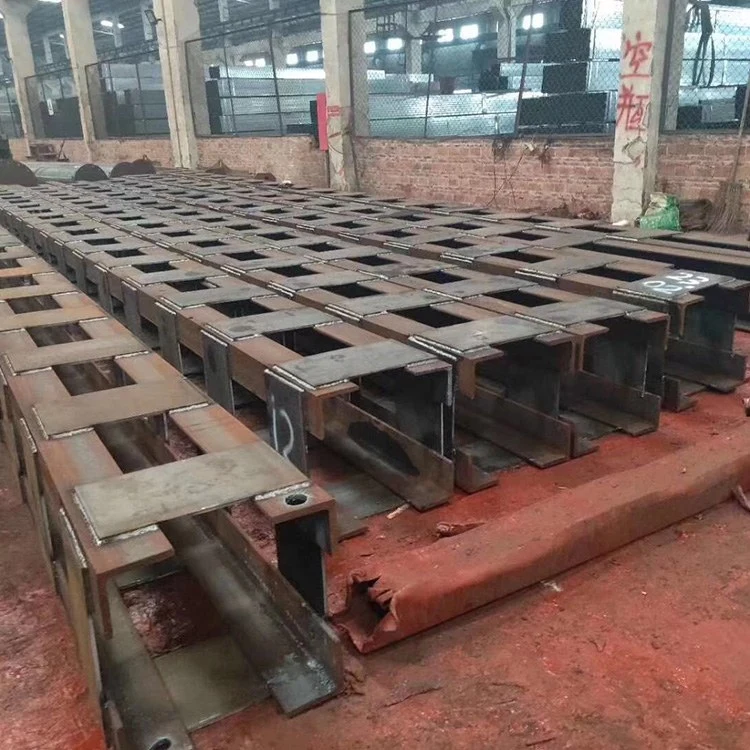

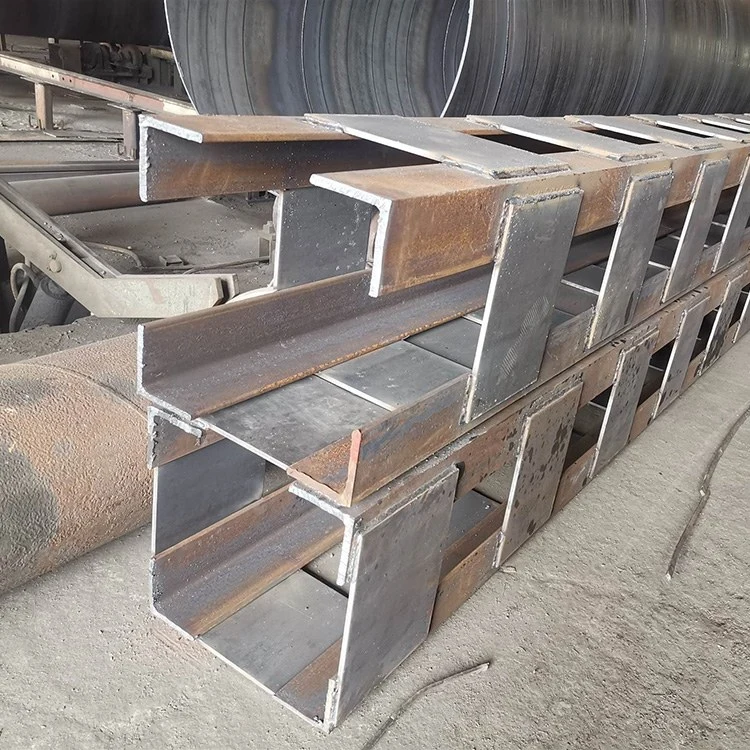

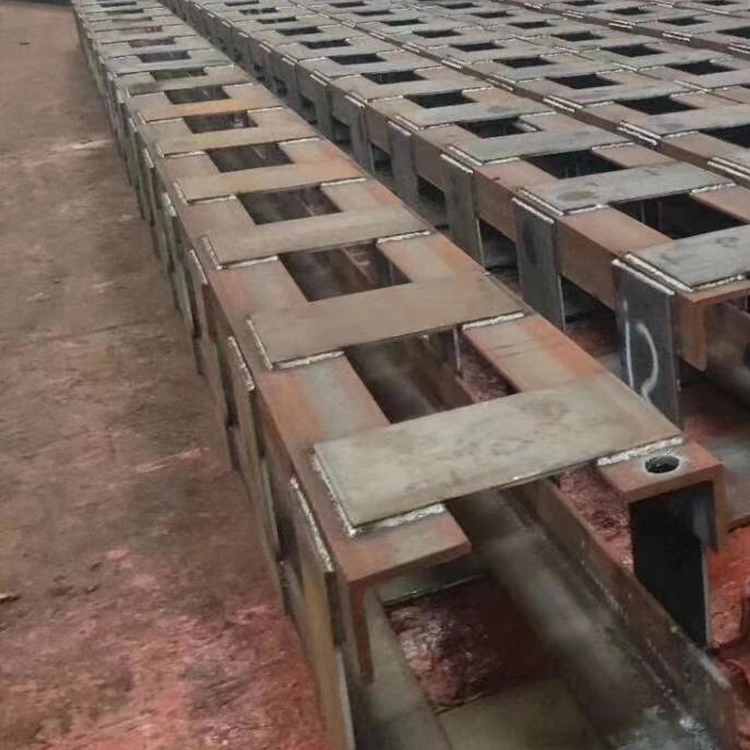

Polygonal Lattice Column

Preferred materials

Shenghui Metal manufactures Polygonal Lattice columns using carefully selected high-quality Q235B or Q345B steel, ensuring excellent strength and toughness. The lattice column is ingeniously composed of components and tie materials (tie strips or tie plates). This unique structural design significantly enhances the bending resistance of steel columns, effectively resisting external forces while maintaining structural strength and saving steel consumption. It can withstand complex and harsh engineering environments, while its small cross-section reduces space occupation.

Application scenarios

Polygonal Lattice Column is widely used in factory construction, deep foundation pit support, reverse construction and other methods, and is highly favored by customers all over the world. Shenghui Metal offers a rich product line, providing various grid columns, including triangular, quadrilateral and polygonal shapes. As a Chinese manufacturer with 9 years of experience, we possess laser cutting and welding technologies. If you have any special requirements, please provide detailed work requirements and we will tailor a product suitable for you.

Product composition

The components of the Polygonal Lattice Column structure ingeniously combine members and borders. Components, as the main load-bearing parts, mainly bear axial forces to ensure the stability of the structure in the longitudinal direction. The tension bars mainly resist lateral forces (relative to the axial direction of the component) and prevent the structure from deforming laterally. The two work together to ensure the overall stability of the grid column. The binding forms of grid columns mainly include binding strips and binding plates. Different forms are suitable for different engineering needs.

From the perspective of material distribution, the design of the lattice column is scientifically reasonable. According to the fundamental principles of mechanics of materials, placing materials as far away from the center of mass of the cross-section as possible can significantly increase the moment of inertia, thereby enhancing the bending and compressive strength of the component. While ensuring the same load-bearing capacity, lattice columns save more than 30% of steel compared to solid columns, integrating high strength, high stability and economy. This building material is widely applicable to various engineering load-bearing scenarios. Steel grating columns can be used in almost all support systems. In addition, reputable building materials manufacturers can customize the length according to the specific needs of customers, making the products more suitable for actual working conditions.
