Laser Cutting Of Lattice Columns

Core Process Introduction

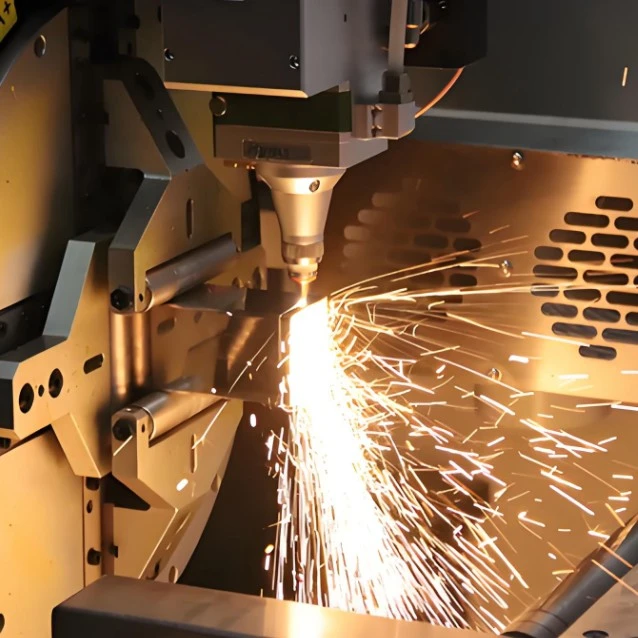

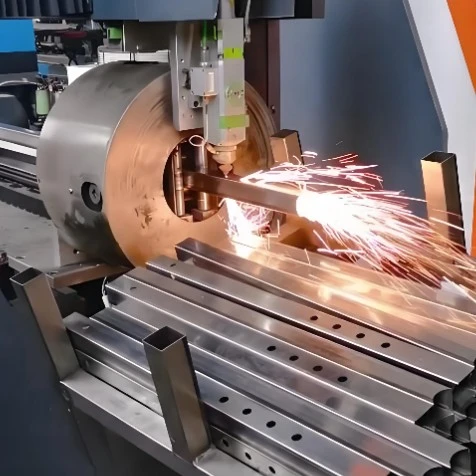

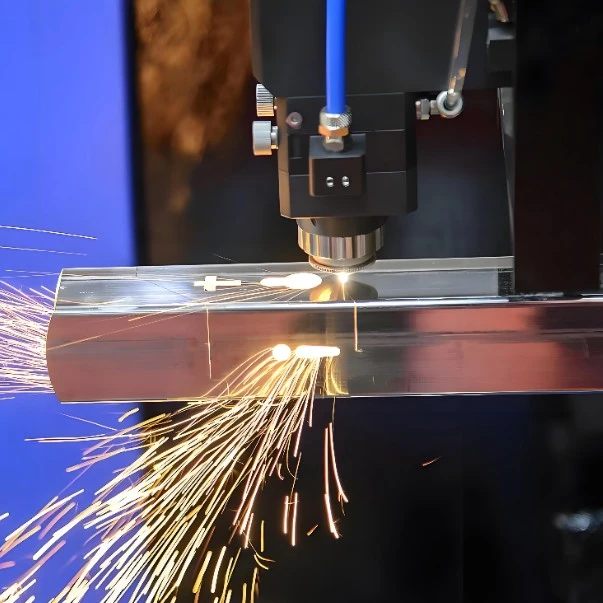

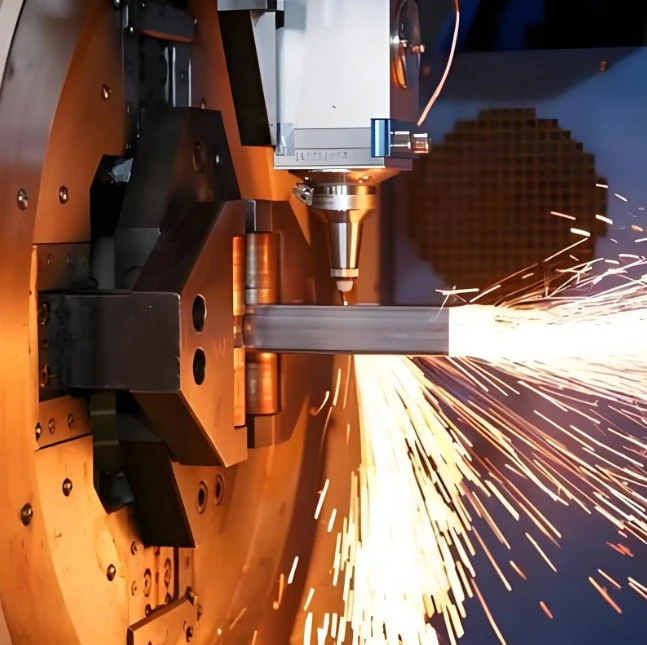

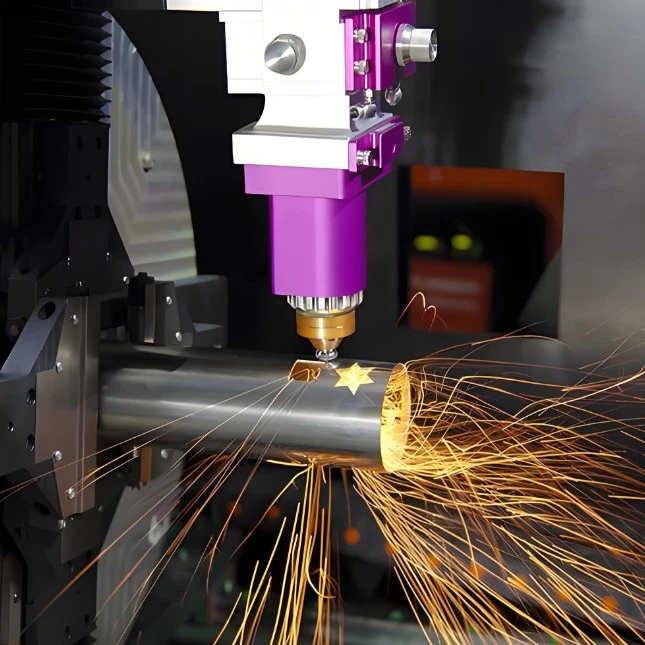

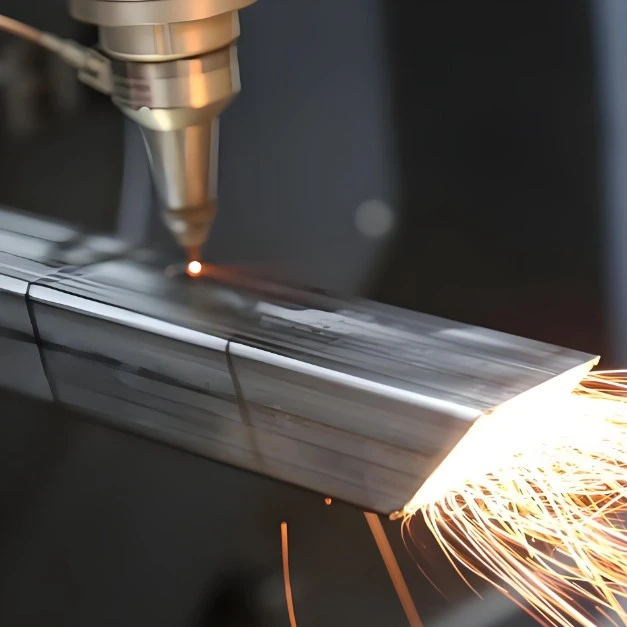

Laser Cutting Of Lattice Columns is an advanced metal processing technology that uses a high-precision laser beam to cut and process the steel used to construct lattice columns. Its core advantage lies in achieving rapid and precise cutting by leveraging the high energy density of the laser, while integrating automation technology to precisely meet the customized processing requirements of the complex components of lattice columns. This process involves focusing the laser beam onto the surface of the steel, causing the material to instantly melt or vaporize, and then using high-pressure auxiliary gas to remove the slag. It completes the cutting and forming of various lattice column components, with the entire process being controllable, which can maximize the quality and dimensional accuracy of the components' cutting and lay a solid foundation for subsequent assembly and welding.

Core Material Compatibility

The process can precisely adapt to various commonly used steel materials for lattice columns, meeting the requirements of different engineering scenarios:

1. Low-alloy high-strength structural steel such as Q345B and Q390B. Among them, Q345B steel has a yield strength of 345 MPa and excellent weldability, making it the preferred material for heavy-load scenarios such as deep foundation pit support and bridge engineering. During cutting, precise control of laser power and cutting speed is carried out to avoid the increase in hardness in the heat-affected zone, which could lead to brittle fracture;

2. Carbon structural steel such as Q235B. It is cost-effective and easy to process, and is widely used in ordinary building structure supports. After cutting, the edges are smooth and can be directly used for assembly and welding;

3. Stainless steel such as 304 and 316L. It is suitable for corrosion-resistant scenarios such as supporting columns for chemical equipment. During cutting, nitrogen gas is used as an auxiliary gas to prevent oxidation and discoloration, ensuring a smooth edge.

High-precision cutting standard

Laser Cutting Of Lattice Columns The accuracy of this process is directly related to the assembly quality of the lattice columns. It strictly follows strict precision control standards: the cutting length error of main structural materials such as angle steel and channel steel is controlled within ±1mm, and the angle deviation is ≤0.5°, ensuring the parallelism and perpendicularity during assembly; for spacers such as spacers and bars, the cutting must precisely control the hole position accuracy according to design requirements. For example, the center distance error of spacers bolt holes is ≤0.3mm to avoid misalignment during installation. Through high-precision laser cutting and full-process parameter monitoring, each component is ensured to meet the assembly standards, enhancing the overall structural stability of the lattice columns.

Customization service capability

Shenghui Metal, leveraging its mature processing capabilities, can provide diversified customized cutting services, expanding the processing specifications of lattice columns: it supports the cutting of extremely long components, with a length up to 18 meters, meeting the requirements of large-scale engineering structures; it can achieve the cutting of irregular cross-sections, such as octagonal and elliptical special cross-section components, accurately reproducing the design concept; at the same time, it can customize lattice column components of different specifications and structures according to the customer's engineering drawings and performance requirements, meeting various special needs ranging from ordinary buildings to heavy-load engineering, and achieving personalized processing and precise matching with engineering scenarios.

Cooperation Guarantee

Our professional technical team customizes cutting parameters based on the characteristics of different steel materials, ensuring stable cutting quality for various material components; equipped with high-precision detection equipment, we conduct comprehensive inspections on key parameters such as length, angle, and hole positions of the cut components to ensure compliance with precision standards; we can provide exclusive Laser Cutting Of Lattice Columns solutions tailored to customer drawings and engineering requirements, suitable for all scenarios from sample prototyping to batch production; we also have a professional technical consulting team to offer pre-project material selection, process consultation, mid-project production tracking, and post-project assembly guidance in a closed-loop service.

Shenghui Metal has been deeply engaged in the metal processing industry for nine years. With its mature Laser Cutting Of Lattice Columns technology, complete production system, and strict quality control, we have gained the trust of customers in the engineering field both at home and abroad. We adhere to the concept of honest cooperation, providing advanced technology, stable quality, and considerate services to create value for customers in the construction, bridge, chemical, and other industries. If you have any requirements related to Laser Cutting Of Lattice Columns, please feel free to consult and connect at any time. We can provide a Price List and Quotation.
